One knob, two echoes.

An echo is what comes back round a loop, a little later and a little quieter. The same loop run on the picture is a trail, or a tunnel. This tutorial builds both from one tune, then puts them on one knob, so turning it lengthens the echo you hear and the tunnel you see together. Fourteen modules, about fifteen minutes.

01A loop is a delay

Feed part of a signal back into itself and it comes round again. How long each trip takes, and how much of it survives, is the whole character of the effect:

  • In the sound, a trip is a stretch of time: a quarter of a second makes an echo, a few milliseconds a comb or a flanger.
  • In the picture, a trip is one frame: last frame's picture is read back under this one's. Read it back a little smaller and every old frame sits inside the new one, which is a tunnel.

Flyback has modules for both, and each takes the fraction that survives a trip as a knob. That knob is what this tutorial is about.

02A tune on a clock

Open Presets, choose Empty, and press F2 for the text view. Type or paste each snippet, and press Ctrl+Enter to build it.

let clock = tempo(bpm: 96)
let beats = clock.beats

let tune  = beats |> notes(rate: 1, gate_length: 0.3) [ E4 G4 B4 E5 D5 B4 G4 A4 ]
let pitch = tune |> note(note: _)
let pluck = tune.gate |> adsr(gate: _, attack: 3ms, decay: 250ms, sustain: 0.1, release: 200ms)

triangle(freq: pitch) * pluck |> out.left

out.volume = 0.75

A Tempo counts beats, and a Note Sequencer on that count with rate: 1 plays a note a beat: an E minor arpeggio, up and back down, eight beats round. The Tempo keeps a name of its own this time, clock, because the echo will want its other output.

03An echo that keeps time

The Echo from the Effects plugin is a stereo delay that counts in steps of the beat rather than in seconds. Patch the Tempo's first output, beats per second, into its tempo, and left and right become steps: at the Echo's four steps a beat, 3 is a dotted eighth, and the right side answers 2 steps after the left. The repeats land on the grid whatever the tempo.

let voice = triangle(freq: pitch) * pluck
let echo  = voice |> echo(tempo: clock, left: 3, right: 2, feedback: 0.54, mix: 0.45)

echo |> out.left
echo.right |> out.right
  • feedback is the fraction that comes round for the next repeat: 0.54 leaves about half each time, so a note trails off over five or six repeats. Near 0.9 it hangs on for seconds.
  • mix is dry against wet. At 0.45 the notes stay in front and the repeats sit behind them.
  • The Echo has two outputs, so the Output gets one on each side. The repeats cross from one to the other.

04A ring on every note

Now something to see. A Circle from the Picture plugin is a shape given as a distance to its rim, and a Fill turns that into ink: outline is its edge, width across. A Stroke on the same beats flashes it on each note and lets it fade within the beat, and the note's place in the tune picks the hue.

let hit  = beats |> stroke(rate: 1, curve: 3)
let ring = circle(radius: 0.6) |> fill(distance: _, width: 0.025).outline

ring * hit
  |> color.hsv(value: _, hue: tune.index, saturation: 0.7)
  |> out.color

tune.index is how far through its eight notes the sequencer is, 0 to 1, so every note of the arpeggio has a color of its own and the same note always has the same one.

05The picture's echo

A Trails reads the last frame back under the new one. zoom just over 1 reads it from a little further out, which draws it inward, angle turns it a little each frame, and persist is what each frame is dimmed by on the way round: the picture's feedback.

ring * hit
  |> color.hsv(value: _, hue: tune.index, saturation: 0.7)
  |> trails(zoom: 1.02, angle: 0.01, persist: 0.95)
  |> out.color

Every ring now slides inward and fades after its note, the way the note's echoes fade after it, so the last few notes are nested inside the one that is sounding, each in its own color. Turn persist down to 0.8 for a short ghost and up to 0.98 for a tunnel that lasts seconds.

A violet ring on black with fainter blue rings trailing inside it.

06One knob for both

The Echo's feedback and the Trails' persist are the same idea, so give them one knob. Declare it at the top and name it in both places, each over a range of its own:

panel repeats = 0.6, label: "Repeats"

let echo = voice |> echo(tempo: clock, left: 3, right: 2, feedback: repeats(0..0.9), mix: 0.45)

  |> trails(zoom: 1.02, angle: 0.01, persist: repeats(0.85..0.985))

Why two ranges for one idea: the echo loses its fraction once a repeat, a few times a second, while the trail loses its fraction every frame, dozens of times a second. For the two to fade over about the same time, the picture's number has to sit much nearer 1. Knob at the bottom, both are short; at the top, both hang on.

Press Ctrl+K for the panel and turn Repeats while it plays. Turning a knob rebuilds nothing, so neither the echo nor the tunnel is interrupted.

The frame rate is part of the picture's loop

A trail's trip is one frame, so at 60 frames a second it goes round twice as often as at 30 and fades twice as fast. The echo does not change with it. Set the preview rate under Settings → Graphics and the recording rate under Recording to the same number, and what you tuned is what you record.

07The whole patch

All of it, with a description. This is the Two echoes preset, under the ones where the picture and the sound meet.

description "One knob, two loops: a pluck through an echo, and a ring that echoes down a tunnel."

panel repeats = 0.6, label: "Repeats"

let clock = tempo(bpm: 96)
let beats = clock.beats

# The sound: a note a beat, and an echo that keeps time with it.
let tune  = beats |> notes(rate: 1, gate_length: 0.3) [ E4 G4 B4 E5 D5 B4 G4 A4 ]
let pitch = tune |> note(note: _)
let pluck = tune.gate |> adsr(gate: _, attack: 3ms, decay: 250ms, sustain: 0.1, release: 200ms)
let voice = triangle(freq: pitch) * pluck
let echo  = voice |> echo(tempo: clock, left: 3, right: 2, feedback: repeats(0..0.9), mix: 0.45)

echo |> out.left
echo.right |> out.right

# The picture: a ring on every note, and a trail that carries it inward.
let hit  = beats |> stroke(rate: 1, curve: 3)
let ring = circle(radius: 0.6) |> fill(distance: _, width: 0.025).outline

ring * hit
  |> color.hsv(value: _, hue: tune.index, saturation: 0.7)
  |> trails(zoom: 1.02, angle: 0.01, persist: repeats(0.85..0.985))
  |> out.color

out.volume = 0.75

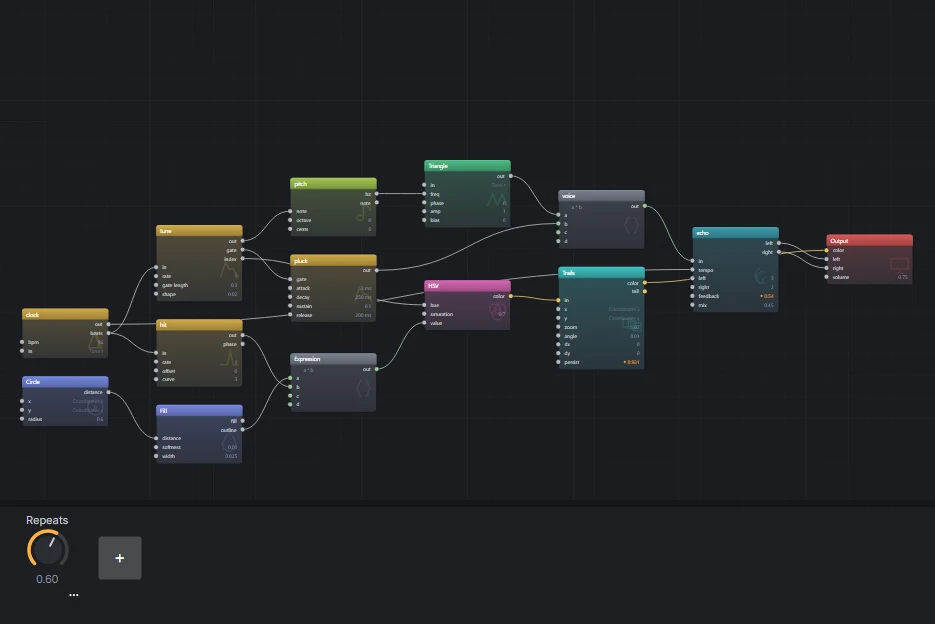

The finished patch on the canvas: a Tempo named clock feeding a Note Sequencer named tune and a Stroke named hit; the tune through a Note into a Triangle and through an ADSR named pluck, multiplied in an Expression named voice, into an Echo whose left and right go to the Output; a Circle into a Fill whose outline, times the hit, sets an HSV's value, with the tune's index on its hue, into a Trails wired to the Output's color. Under the canvas, the knob panel with one knob, Repeats.
The same patch on the canvas, with the Repeats knob on the panel under it.

08Where next

  • Change zoom to just under 1, 0.98, and the trail runs outward instead. Give angle more and it spirals.
  • The Feedback module reads the last frame anywhere you point it rather than where it was. The Feedback tunnel preset is rings read back rotated, scaled and dimmed; open it and compare it with the Trails here.
  • Any wire can run backwards. In text it is <-, and the Loop preset builds a filter out of one: an add, a multiply and a wire back into the add.
  • The Space preset puts a pluck through the delay and then a reverb, which is thousands of short echoes.
